4 Monitor 2x2 Wall Mount , Dual Swivel Arm
Product ships in 1-2 Days
Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.
Retail Price
$586.00
main product photo
Loading...

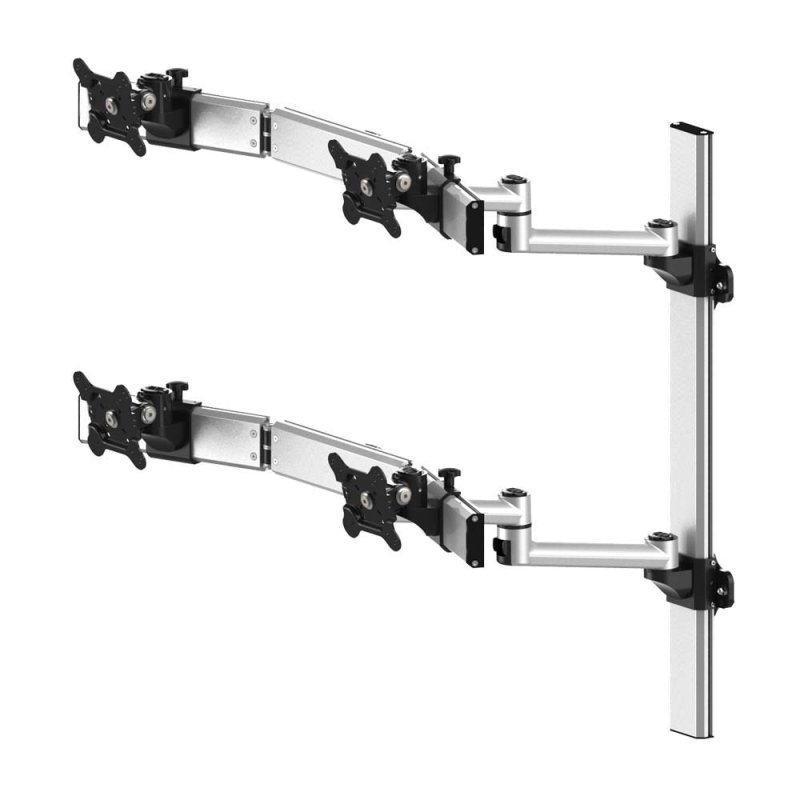

4 Monitor 2x2 Wall Mount , Dual Swivel Arm

Dual monitor 3-section 2-fold joint beam length: 35.15"; Two screens in each row can be placed straight or in cockpit shape.

Supports four monitors 2X2, average monitor width no more than 35.15" (800 mm) for the two next to each other, average monitor height no more than 26" (660 mm) for the two up and down.

This is optimal for corner mounting.

Information Specifications Reviews Other Solutions
Availability: In stock
SKU
HV-S4SWWJ2

Description

VESA Wall Mount for 4 Monitors 2x2 with Dual Swivel Arm is a multiple monitor wall mount with 115 degree up/down tilt & up to 180 degree swivel functionalities. 90 degree monitor rotation enables portrait and landscape positioning.

Aluminum alloy material renders the LCD monitor mount lightweight yet sturdiness, with weight capacity of 22 lbs (10 kg) for each monitor. Optimal viewing angles and most ergonomic positioning can be achieved through the multiple flat panel mount full motion characteristics.

This mounting bracket, which fits all standard types of wall, is ideal for classrooms, offices, homes, public area, industrial settings, production line and many more.

The monitor arm features integrated durability through state of the art engineering technology, and is tested for strength in our oversea manufacturing plant. The LCD wall mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts.

Features

  • Wall mount type, supports four monitors 2x2 up to 30"
  • The monitor beam can be adjusted in an arc configuration
  • Accommodates various display sizes; slide screens into place to align edges
  • Easy adjust by hands: 90 degree backward / 25 degree forward tilting, 90 degree rotation and 90 degree swivel
  • The two swivel arms create more extensions which would also allow the whole row of screens to be swiveled left or right at bigger angles
  • Extends/retracts LCD up to 21.5" ( 546 mm )
  • Lightweight and extremely durable for extended life
  • Easy assembly for convenient usability
  • Cable management feature conceals and routes cables under the arm, out of the way
  • Height Adjustment Range: 9.4" dynamically with Front-end Adjuster (FVL-S1) option
  • Our most cost-effective four - screen solution
  • Can be configured to hold a laptop instead of a LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
    • VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
    • Rotation 90° Landscape / Portrait
    • Swivel 180°
    • Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
    • Minimum Profile From Wall 8" (205 mm)
    • Maximum Extension 27" (685 mm)
    • Wall Mount Bar Length 2.9" X 31.5" (74 X 800 mm)
    • Mounts on Studs Single-stud
    • Type of Display PC monitor & compatible Apple display with option part # ADA-S1
    • Color Metallic Silver & Glossy Black
