Quad Monitor Desk Mount for Straight or Cockpit Placement

Product ships in Typically ships in 1 Day(s)

Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.

Retail Price

$463.00

Qty

Skip to the end of the images gallery

Skip to the beginning of the images gallery

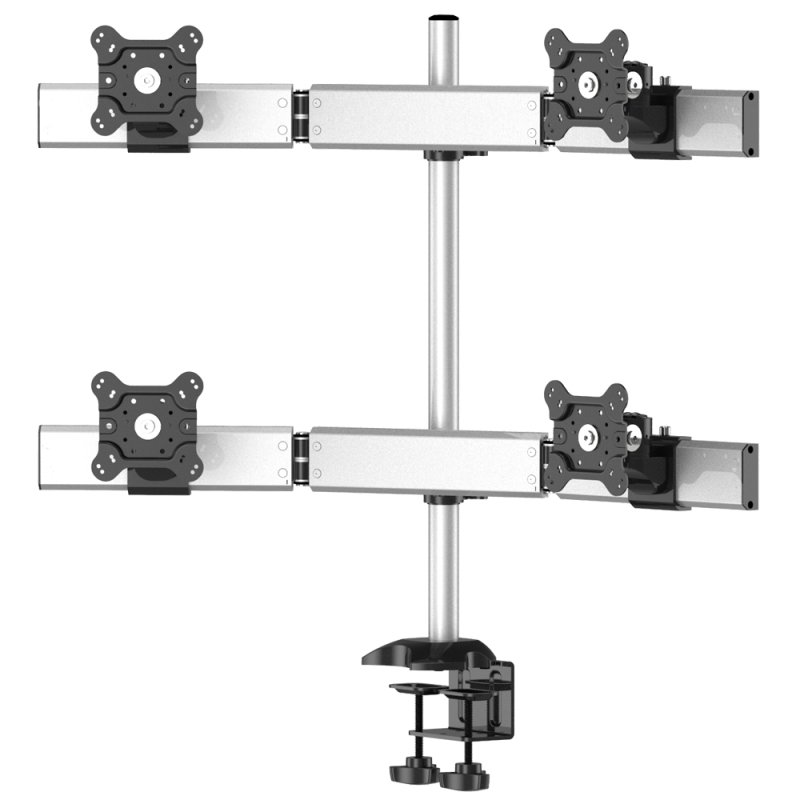

Quad Monitor Desk Mount for Straight or Cockpit Placement

Name: Quad Monitor Desk Mount for Straight or Cockpit Placement
Brand: Brand
SKU: DM-S4J27
Price: 463 USD
Availability: InStock

A quad-monitor desktop mount with vast maneuverability will let you enjoy the greatest efficiency and comfort with the least effort.

Information Specifications Reviews Other Solutions

Availability: In stock

SKU

DM-S4J27

Longer Pole Option (Select One)

Number of Apple Monitors (Select One)

VESA 200x100, 200x200 Adapter (Select One)

Dynamic Height Adjuster (Select One)

Notebook Tray (Select One)

Qty:

Product Information

Description

When the job calls for four monitors, you'll need a desktop mount that's specifically built to fit the call. It'll require a product that provides stability, ease of use, maximum comfort, and can adjust on the fly to keep up with the hustle and bustle of your workday.

The Quad Monitor Desk Mount for Straight or Cockpit Placement is the tool for the job and delivers a set of features designed to address the special circumstances of displaying four monitors. A streamlined approach makes it easy to securely attach each individual monitor to the unit, which supports LCD screens up to 30" in size and 88 lbs. in weight (22 lbs. per monitor). Users can enjoy 90° rotation from landscape to portrait orientation, forward/backward tilt, and panning capabilities to enhance your viewing experience.

Manual adjustment of the pole extends the height up to 24.3" in a snap, and headache-free installation supports mounting hole patterns 75 x 75 and 100 x 100, with other options available (sold separately). The Quad Monitor Desk Mount for Straight or Cockpit Placement is an all-in-one monitor mounting product that not only addresses all of the most important factors in a quad-mounting scenario but far exceeds them in ways that typical mounts are unable to.

Features

Supports four flat-panel VESA monitors 2 by 2 up to 30" with compatible mounting hole patterns
Provides tilting, swiveling, rotation, and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics, and extended life
Mount includes desk clamp and grommet (goes through a hole) base
Clamp table thickness : 0.5"- 2.5" ( 12.7 - 63.5 mm)
Grommet table thickness : 0.5"-2.5" (12.7 - 63.5 mm); Hole Diameter: 0.4"- 2.36" (10 - 60 mm)
Quick-release/attachment mounting heads to assist with multiple installations
Pole lengths available: 27.6" and 43.3"
Horizontal 3-section 2-fold joint beam angles can be adjusted for placing two displays in a straight row or cockpit arc; Beam length: 35.15" (89.3cm);
Install the arm at any point on the vertical pole; Variable height adjustment - placing the screens at the right height for you
Dynamically adjust height up to 9.4" with Dynamic Height Adjuster optional accessory
Excellent space-saving and ergonomic solution; Can expand to support more monitors without disturbing the original configuration
Neat and efficient cable management
Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)

Specifications

Fits Monitor Sizes Supports up to 4 x 32" flat panel screen
Weight Capacity Supports up to 88 Lbs (40 Kg) in total
VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
Rotation 90° Landscape / Portrait
Tilt 115°, Backward -90°, +25° Forward
Swivel 360°
Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
Extends / Retracts Monitor 71.9" (1825 mm)
Type of Display PC monitor & compatible Apple display with option part # ADA-S1
Clamp Table Thickness 0.5" - 2.5" (12.7 - 63.5 mm)
Grommet Table Thickness 0.5" - 2.5" (12.7 - 63.5 mm), Hole Diameter: 0.4"- 2.36" (10 - 60 mm)
Color Metallic Silver & Glossy Black
