Quad Monitor Desk Mount with Crossbar and Swivel Arm

Product ships in Typically ships in 1 Day(s)

Our lead times have been optimized for smaller order quantities. If you are looking to purchase in bulk, your lead times may be extended.

Retail Price

$433.00

Qty

Skip to the end of the images gallery

Skip to the beginning of the images gallery

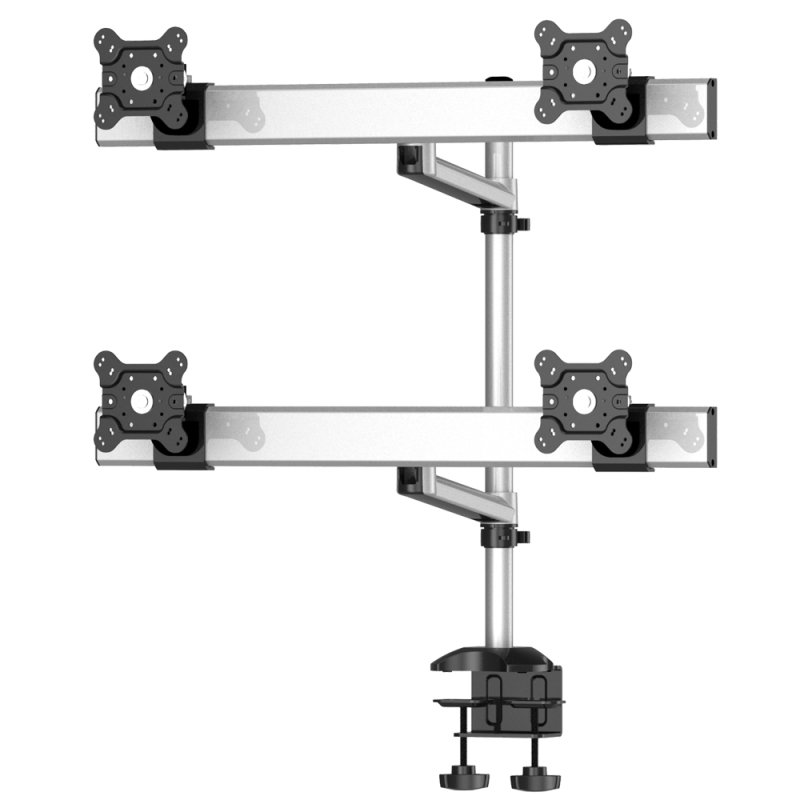

Quad Monitor Desk Mount with Crossbar and Swivel Arm

Name: Quad Monitor Desk Mount with Crossbar and Swivel Arm
Brand: Brand
SKU: DM-S4SWDHV7
Price: 433 USD
Availability: InStock

This sleek, enhanced quad monitor desk mount is the perfect solution for offices, healthcare, and medical centers, and for other customized workplaces. The reinforced crossbar offers extra support, allowing the model to carry heavy-set monitors while still retaining the flexibility and quality that customers have come to expect from our brand.

Information Specifications Reviews Other Solutions

Availability: In stock

SKU

DM-S4SWDHV7

Longer Pole Option (Select One)

Number of Apple Monitors (Select One)

VESA 200x100, 200x200 Adapter (Select One)

Dynamic Height Adjuster (Select One)

Notebook Tray (Select One)

Qty:

Product Information

Description

A premium adjustable desk monitor mount that's designed to securely support four (4) individual LCD monitors 2 X 2, the Quad Monitor Desk Mount with 2-in-1 Base & Swivel Arm provides users with features that combine the latest advancements in workplace ergonomics with state-of-the-art innovations in mounting solutions.

No matter where you sit at the table, the unique single swivel arm provides full 360° panning capabilities, forward/backward tilt, and extension/retraction options to always make sure you have the best seat in the house and uncompromisingly comfortable viewing experience. The durable crossbar attaches to each individual monitor securely and can support LCD screens up to 30" and 110 lbs. in weight (27.5 lbs. per monitor). The mounting attachments also allow for fast 90° rotation from landscape to portrait orientation.

The height adjusts in a matter of seconds all the way up to a full 24.3" with longer pole options available (sold separately), and installation supports common mounting hole patterns 75 x 75 and 100 x 100 (an additional adapter can be purchased to allow for 200 x 100 and 200 x 200). When you need a four monitor mounting solution for your desk, make sure the Quad Monitor Desk Mount is by your side!

Features

Supports four flat-panel VESA monitors 2 X 2 up to 30" with compatible mounting hole patterns
Provides full-range of extending, retracting, tilting, swiveling, rotation, and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics, and extended life
Mount includes desk clamp and grommet (goes through a hole) base
Clamp table thickness : 0.5"- 2.5" ( 12.7 - 63.5 mm)
Grommet table thickness : 0.5"-2.5" (12.7 - 63.5 mm); Hole Diameter: 0.4"- 2.36" (10 - 60 mm)
Quick-release/attachment mounting heads and swivel arm to assist with multiple installations
Pole lengths available: 27.6" and 43.3"
Horizontal beam length: 31.5" (80cm)
Install the arms at any point on the vertical pole; Variable height adjustment - placing the screens at the right height for you
Dynamically adjust height up to 9.4" with Dynamic Height Adjuster optional accessory
Excellent space-saving and ergonomic solution; Can expand to support more monitors without disturbing the original configuration
Cable management housings and clips on the underside of the arms route and hide cords
Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)

Specifications

Fits Monitor Sizes Supports up to 4 x 32" flat panel screen
Weight Capacity Supports up to 88 Lbs (40 Kg) in total
VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
Rotation 90° Landscape / Portrait
Tilt 115°, Backward -90°, +25° Forward
Swivel 360°
Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
Extends / Retracts Monitor 14.4" (365 mm)
Type of Display PC monitor & compatible Apple display with option part # ADA-S1
Clamp Table Thickness 0.5" - 2.5" (12.7 - 63.5 mm)
Color Metallic Silver & Glossy Black
