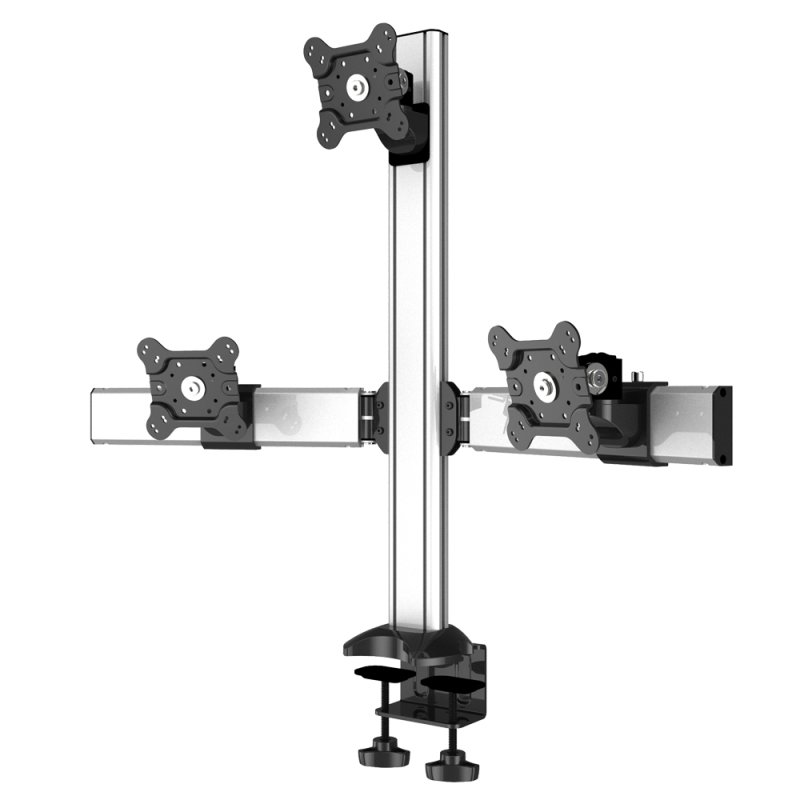

Triple Monitor Desk Mount - Triangle & Low Profile
Achieve a triangle workflow with three monitors to save space, especially with limited desk depth, and slide left or right and up or down for a perfect fit.
Availability:
In stock
SKU
DM-S3FN35BF7
Description
Customize your workspace or display design, even in tight spaces, and never sacrifice your viewing comfort and style. The Triple Monitor Desk Mount - Triangle & Low Profile allows you to display and lock three monitors in prime viewing spots utilizing two horizontal side by side orientation beams. Cords are artfully controlled for a sleek, clean look that matches the modern design of this exceptional triple monitor desk mount.
A T-Style bar design offers supreme strength and reliability to mount your monitors with the added sliding function. Adjust the specific viewing angles of each screen individually to accomplish the best layout. The monitors tilt, swivel, and rotate on the individual head mounts to provide the most ergonomic viewing angles. Streamline your design and enjoy the sleek silver exterior and professional cord management of this innovative mounting system.
Features
- Supports three flat-panel monitors in a positive triangle or inverted triangle shape up to 32" each within 110 lbs in total weight and compatible VESA pattern
- Provides tilting, swiveling, rotation, and optional dynamic height adjustment motions to maximize display viewing comfort by reducing neck and eye strain
- Constructed from lightweight-yet-durable polished aluminum and black trim for maximum strength, environmentally friendliness, bold aesthetics, and extended life
- Mount includes desk clamp and grommet (goes through a hole) base
- Clamp table thickness : 0.5"- 2.5" ( 12.7 - 63.5 mm)
- Grommet table thickness : 0.5"-2.5" (12.7 - 63.5 mm); Hole Diameter: 0.4"- 2.36" (10 - 60 mm)
- Quick-release/attachment mounting heads to assist with multiple installations
- Vertical bar lengths available: 27.6" and 43.3"
- Side beam length: 13.8" each; The two side monitors can be adjusted in an arc configuration if desired
- Install the side beams at any point on the vertical bar. Variable height adjustment - placing the screens at the right height for you by sliding along the grooves or dynamically adjust height up to 9.4" with Dynamic Height Adjuster optional accessory
- Excellent space-saving and ergonomic solution; Can expand to support more monitors without disturbing the original configuration
- Neat and efficient cable management
- Designed with state of the art engineering technologies; Safe, easy to use; Simple installation and effortless operation
- Can be configured to hold a laptop instead of an LCD display simply by getting the VESA Compatible Laptop Tray (NBT-B1)
- Fits Monitor Sizes Supports up to 3 x 30" flat panel screen
- Weight Capacity Supports up to 66 Lbs (30 Kg) in total
- VESA Mounting Hole Pattern 75 x 75 and 100 x 100; can support 200 x 200 or 200 x 100 via additional adaptor plate (VSA-B2) option
- Rotation 90° Landscape / Portrait
- Tilt 115°, Backward -90°, +25° Forward
- Swivel 180°
- Height Adjustment Range 9.4" (238 mm) dynamically with Front-end Adjuster (FVL-S1) option
- Extends / Retracts Monitor 71.9" (1825 mm)
- Pole Length 27.6" (700 mm). Longer pole options available for 43.3" (1100 mm)
- Type of Display PC monitor & compatible Apple display with option part # ADA-S1
- Clamp Table Thickness 0.5" - 2.5" (12.7 - 63.5 mm)
- Grommet Table Thickness 0.5" - 2.5" (12.7 - 63.5 mm), Hole Diameter: 0.4"- 2.36" (10 - 60 mm)
- Color Metallic Silver & Glossy Black
